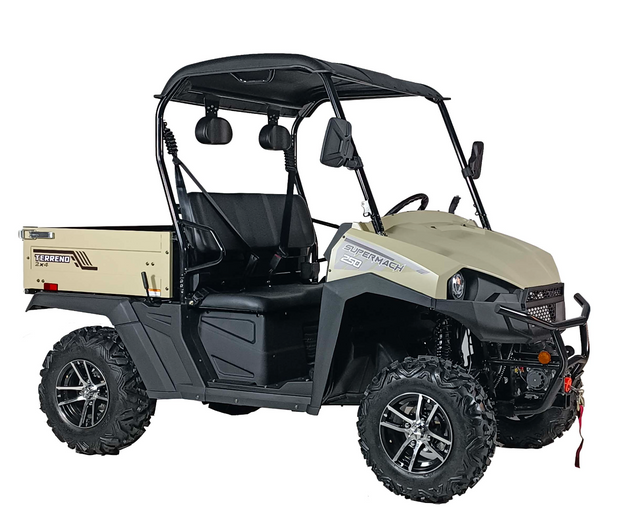

UTV 250-2
/
Shipping calculated at checkout.
To place an order, please contact us sales@supermach.com
| Specification | UTV 250-2 |
| Engine model | JN172MM/JN1P65YML-6 |
| Battery | 12V 9AH |
| Type | Single Cylinder, Four-Stroke, Horizontal, Forced Air Cooling (oil cooler can be added) |
| Bore* stroke | 65*60 |
| Compression ratio | 9.5:1 |
| Working volume of cylinder | 199.1mL |
| Max. engine power (E-mark) | 9.3kW/7000r/min |
| Maximum Speed | 37MPH (60KM) |
| Max. engine torque | Air Cooling |
| Fuel Grade | 92 |
| Lubrication Method | Pressure Splash Type |
| Starting Model | Electric Starting |
| Ignition Mode | CDI |
| Transmission Mode | Manual |
| Vehicle Commander | 106in (2700mm) |
| Vehicle Width | 57in (1450mm) |
| Car Height | 76in (1940mm) |
| Wheelbase | 70in (1790mm) |
| Track width | Front: 45.3in (1150mm) Rear: 45.3in (1150mm) |
| Minimum Ground Clearance | 11.8in (300mm) |
| Seat Cushion Height | 33.6in (854mm) |
| Turning Circle Radius | 197in (5000mm) |
| More Specification | |
| Damping Form | Coil Spring Damping |
| Brake Type Main Brake | Hydraulic Disc Type One Drive Four |
| Emergency/ Parking Brake | Brake Rear Axle /Manual Operation |
| Rim Type | Aluminium |
| Tyre Specification | Front: 25* 8-12/ Rear: 25 * 10-12 |
| Fuel Tank Volume | 23L |
| Rated Load Capacity | 794 lbs |
| Container Load | 441 lbs |
| Max. Total Mass | 1790 lbs |
| Frame | Steel Pipe Structure |
| Clutch Type | Automatic Clutch |
| Crankcase Lubricating Oil | SF-15W/40 |
| Oil Capacity | 41oz (1200ml) |
| Fuel Tank Capacity | 6Gallons (23L) |
| Headlamps | 35W LED White Light |
| Drive Mode | Rear Drive |
| Parking mode | Two Rounds |
| Parking Brake | Mechanical |
| Magneto Type | Flywheel Rotor Type DC Output |
| Number of Containers (40GP) | 16 |
| Package Size | 91.7in x 57.5in x 49.6in |
