$10,500.00
/
Shipping calculated at checkout.
Only 0 items in stock!

To place an order, email sales@supermach.com



HEAVY-DUTY AND TOUGH

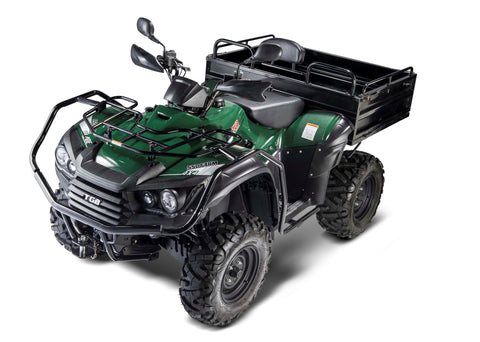

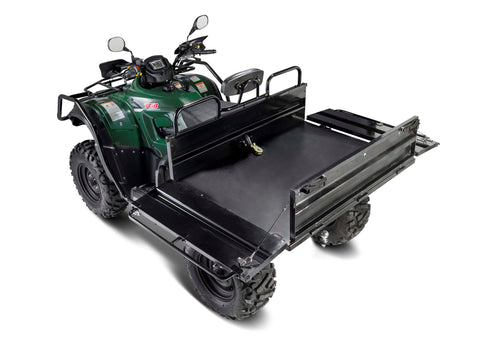

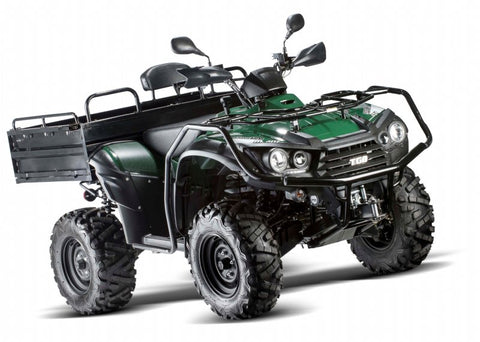

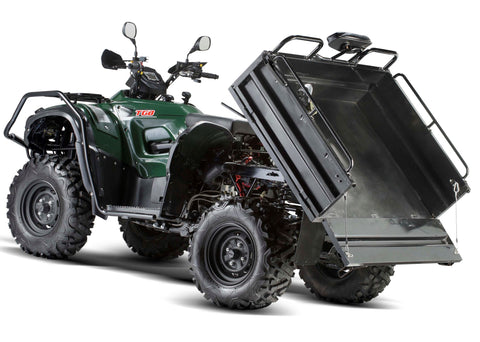

Blade 600 AR EPS 4X4 is the best friend of farmer with the bigger and wider body design for more loading capacity. The design of 320 mm ground clearance is higher than average agriculture ATV making it stand out from the crowd. Combining all the practical functions, Blade 600 AR EPS 4X4 has confidence helping all the heavy works get solved.



WARRANTY

2 Year Limited Warranty

--

Technical Specification

TGB BLADE 600AR EPS 4×4
Engine Type 561 cc, Single Cylinder, SOHC
Ignition ECU
Starter Electric
Bore X Stroke Ø 95 × 79.2 mm
Compression Ratio 10.2
Fuel System 42 mm Throttle Body / Programmed Fuel Injection
Max Power 31.4 kw / 7000 rpm
Max Torque 53.6 Nm / 5500 rpm
Drive System 4 × 4 Shaft Drive
Gear Selection L/H/N/R/P
Transmission V-belt CVT Automatic
Over Ride Button 2550
Front Suspension Double A-Arm
Rear Suspension Double A-Arm
Front/Rear Brake ø 200 mm discs with 1-piston calipers
Parking Brake ø 180 mm discs with 1-piston calipers
Front Tire AT 25 × 8 - 12
Rear Tire AT 25 × 10 - 12
Wheelbase (mm) 1465
Length/Width/Height (mm) 2550 X 1290 X 1280
Fuel Capacity 18L
Electrical Outlet Connector 2 DC 12V 10A 120W
Color MILITARY GREEN
Estimated Dry Weight (kg) 555kg
