Blade 600SE.X EPS is now all the rage since it released to the market. The unique and confident design with modern LED-matrix headlights and Full-LED lighting, improved automatic transmission, extended chassis, powerful engine, pleasant handling and excellent driving characteristics. Front radiator grille is removable for easy cleaning. The whole new 600SE.X EPS will definitely drive all attentions on you! Seat rest, Mirrors, Hand guard not included.Can be purchased separately
WARRANTY
2 Year Limited Warranty
--
Technical Specification
TGB BLADE 600 SE.X EPS
Engine Type
561 cc,Single Cylinder, SOHC
Ignition
ECU
Starter
Electric
Bore X Stroke
Ø 95 × 79.2 mm
Compression Ratio
10.2
Fuel System
42 mm Throttle Body / Programmed Fuel Injection
Max Power
44.8 HP / 6500 rpm
Max Torque
46.5 Nm / 5500 rpm
Drive System
4 × 4 Shaft Drive
Gear Selection
L / H / N / R / P
Transmission
V-Belt CVT Automatic
Engine Braking System
Standard
Over Ride Button
Standard
Front Suspension
Dual A-arm
Rear Suspension
Dual A-arm with Anti-roll Bar
Front/Rear Brake
Hydraulic Disc with piston caliper and Hydraulic Foot Brake
Parking Brake
Park In Transmission / Lockable Hand Lever
Front Tire
AT 25 × 8 – 12 , 6 PLY
Rear Tire
AT 25 × 10 – 12 , 6 PLY
Wheelbase (mm)
1290
Length/Width/Height (mm)
2155 X 1240 X 1280
Fuel Capacity
18 L
Electrical Outlet Connector
2 DC 12V 10A 120W
Instrumentation
Digital instrument panel with odometer, speedmeter, Tripmeter, RPM, transmission position, fuel gauge, Hi-Temp/Low-Battery lights, high beam light, EFI checking, differential indicator, 2WD/4WD indicator, EPS indicator
Color

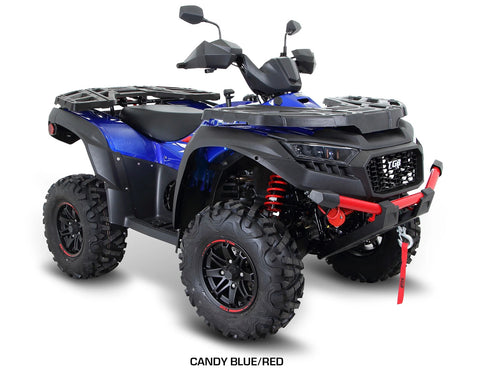

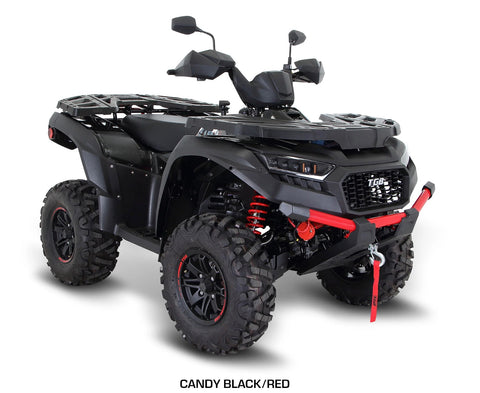

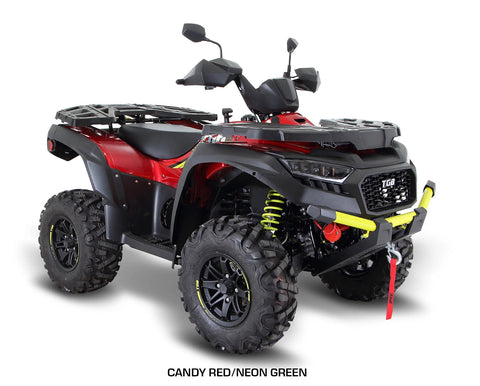

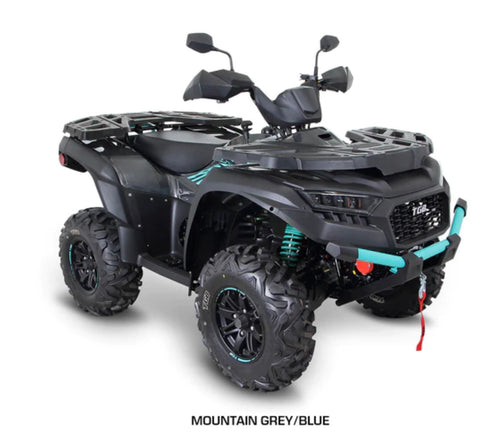

Candy Blue / Red Mountain Grey / Teal Candy Black / Red
